LT786
Applications：Suitable for continuous delivery of saturated steam and hot water at temperatures below 150 °C or intermittent delivery at temperatures below 160 °C.(Overheated steam will reduce the service life of the product; the vacuum caused by the closed hose assembly ends will cause "popcorn phenomenon" or delamination of the inner glue)

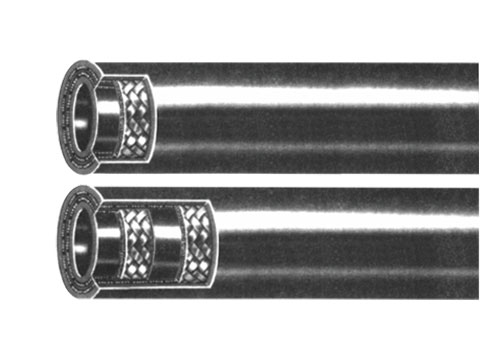

Reinforcement：One or two layers of braided fiber or steel wire
Cover：Heat-resistant, weather-resistant, wear-resistant synthetic red rubber, steam pipe body equidistant puncture
Temperature Range：-40℃ to +150℃ (-13℉ to +302℉)
SIZE |
SIZE |
I.D. (mm) |
O.D. |
Max.W.P. |
Min.B.P. |
|
Min |
Max |
(mm) |
(MPa) |
(MPa) |
||
-6 |
3/8—1 |
9.8 |
10.8 |
22 |
0.4 |
3 |
-8 |
1/2—1 |
12.7 |
13.7 |
24 |
0.4 |
3 |
-10 |
5/8—1 |
15.5 |
16.5 |
27 |
0.4 |
3 |
-12 |
3/4—1 |
18.5 |
20.0 |
30 |
0.4 |
3 |
-16 |
1—1 |
24.5 |
26.0 |
38 |
0.4 |
3 |
-20 |
1 1/4—1 |
31.5 |
33.0 |
46 |
0.4 |
3 |
-24 |
1 1/2—1 |
37.5 |
39.0 |
51 |
0.4 |
3 |
| -32 | 2—1 |
50.0 |
52.0 |
64 |
0.4 |
3 |
-6 |
3/8—2 |
9.8 |
10.8 |
23 |
0.4 |
3 |
-8 |
1/2—2 |
12.7 |
13.7 |
27 |
0.4 |
6 |
-10 |
5/8—2 |
15.5 |
16.5 |
29 |
0.4 |
6 |
-12 |
3/4—2 |
18.5 |
20.0 |
32 |
0.4 |
6 |
-16 |
1—2 |
24.5 |
26.0 |
39 |
0.4 |
6 |
-20 |
1 1/4—2 |
31.5 |
33.0 |
47 |
0.4 |
6 |
-24 |
1 1/2—2 |
37.5 |
38.0 |
52 |
0.4 |
6 |
-32 |
2—2 |
50.0 |
52.0 |
89 |
0.4 |
6 |
