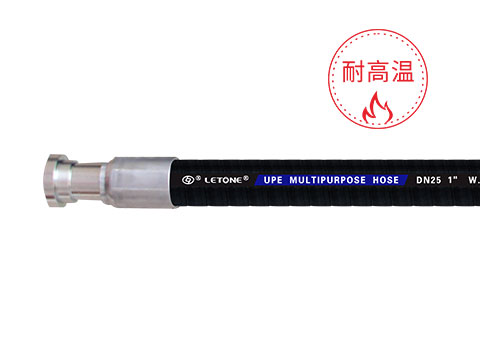

LT1202H
Application：This product is widely used in chemical, steel, construction, food, medicine and other fields. It has super wear-resistant and corrosion-resistant product characteristics and high saturation lining, which means that the product is almost free of any substances , Corrosive chemicals, etc.), the product ’s absolutely neutral odor also determines its suitability for the food and beverage industry and the production of pharmaceutical products
Reinforcement layer：2-4 layers of steel wire winding
Outer layer：black / red / yellow / blue ozone-resistant, UV-resistant, wear-resistant NV or EPDM rubber
Temperature range：-30 ° C ~ + 100 ° C (-22 ° F ~ + 212 ° F) steam can reach + 135 ° C (within 30 minutes)
Reference standard：EN12115
|
SIZE |
I.D. |
W.P. |
B.P. |
(in.) |
(mm) |
（MPa） | （MPa） |
| 3/16"-2 | 5 | 42 | 166 |
| 1/4"-2 | 6 | 40 | 160 |
| 5/16"-2 | 8 | 35 | 140 |
| 3/8"-2 | 9 | 33 | 132 |
| 1/2"-2 | 12 | 28 | 110 |
| 5/8"-2 | 16 | 25 | 100 |
| 3/4"-2 | 19 | 22 | 85 |
| 1"-2 | 25 | 17 | 65 |
| 1 1/4"-2 | 31 | 13 | 50 |
| 1 1/2"-2 | 38 | 9 | 36 |
| 2"-2 | 50 | 8 | 32 |
| 1/2"-4 | 12 | 50 | 166 |
| 5/8"-4 | 16 | 45 | 180 |
| 3/4"-4 | 19 | 42 | 168 |
| 1"-4 | 25 | 38 | 152 |
| 1 1/4"-4 | 31 | 33 | 130 |
| 1 1/2"-4 | 38 | 29 | 116 |
| 2"-4 | 50 | 25 | 100 |
