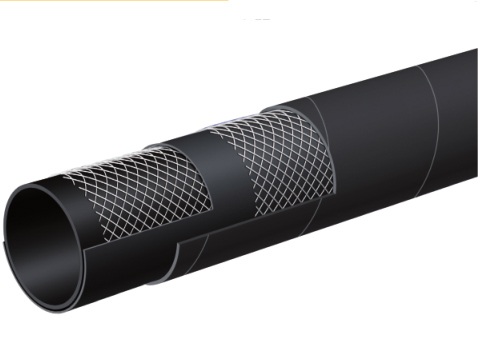

LT782
Applications：Suitable for conveying petroleum-based hydraulic oil, lubricating oil, gasoline, fuel oil, water and air, etc
Reinforcement：One or two layers of braided fiber and one layer of spiral steel wire
Cover：Black oil-resistant, weather-resistant, wear-resistant synthetic rubber
Temperature Range：-40 °C to + 100 °C (-40 °F to + 212 °F)
|
SIZE |
SIZE (in.) |
I.D. |
O.D. |
Max.W.P. |
Min.B.R. |
|
|
Min |
Max |
Max |
(MPa) |
(MPa) |
||
|
12 |
3/4 |
18.2 |
19.8 |
34.9 |
2.1 |
8.4 |
|
16 |
1 |
24.6 |
26.2 |
41.3 |
1.7 |
7 |
|
20 |
1 1/4 |
30.6 |
33.0 |
50.8 |
1.4 |
5.6 |
|
24 |
1 1/2 |
36.9 |
39.3 |
57.2 |
1.05 |
4.2 |
|
32 |
2 |
49.2 |
52.4 |
69.9 |
0.7 |
2.8 |
|
40 |
2 1/2 |
61.9 |
65.1 |
82.6 |
0.4 |
1.7 |
|
48 |
3 |
74.6 |
77.8 |
95.3 |
0.4 |
1.6 |
|
56 |
3 1/2 |
87.3 |
90.5 |
107.9 |
0.3 |
1.3 |
|
64 |
4 |
100.0 |
103.2 |
120.7 |
0.25 |
1.0 |
