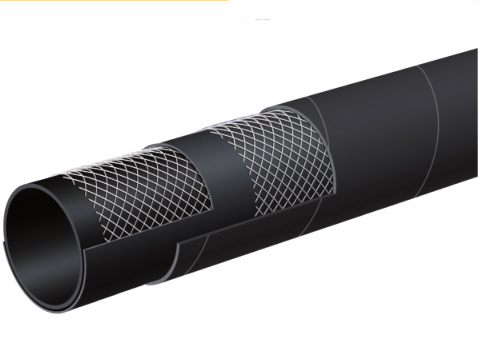

LT783
Applications：Suitable for conveying petroleum-based hydraulic oil, lubricating oil, gasoline, fuel oil, water and air, etc
Reinforcement：One layer of braided high strength steel wire
Cover：One layer of braided dipping fiber
Temperature Range：-40 °C to + 100 °C (-40 °F to + 212 °F)
|
SIZE |
SIZE |
I.D. |
O.D. |
Max.W.P. | Min.B.P. |
Min.B.R. |
|
|
Min |
Max |
Max |
(MPa) |
(MPa) |
(mm) |
||
|
3 |
3/16 |
4.8 |
5.5 |
13.7 |
21 |
84 |
75 |
|
4 |
1/4 |
6.4 |
7.2 |
15.3 |
21 |
84 |
85 |
|
5 |
5/16 |
7.9 |
8.7 |
17.6 |
15.7 |
62.8 |
100 |
|
6 |
3/8 |
10.3 |
11.1 |
20.0 |
14 |
56 |
115 |
|
8 |
1/2 |
12.7 |
13.7 |
24.0 |
12.2 |
48.8 |
140 |
|
10 |
5/8 |
15.9 |
17.0 |
28.0 |
10.5 |
42 |
165 |
|
12 |
7/8 |
22.2 |
23.3 |
32.2 |
5.6 |
22.4 |
185 |
|
16 |
1 1/8 |
28.6 |
29.8 |
38.9 |
4.3 |
17.2 |
230 |
|
20 |
1 3/8 |
34.9 |
36.1 |
45.2 |
3.5 |
14.0 |
265 |
|
32 |
1 3/4 |
46.0 |
47.2 |
57.6 |
2.4 |
9.6 |
335 |
|
40 |
2 3/8 |
60.3 |
61.9 |
74.2 |
2.4 |
9.6 |
610 |
|
48 |
3 |
76.2 |
77.8 |
91.7 |
1.4 |
5.6 |
840 |
