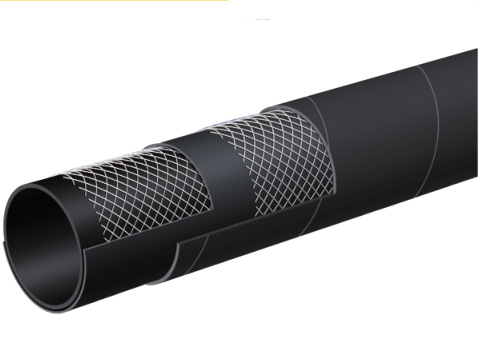

EN854-2TE-3TE OIL RETURN HOSE

LT787

Product Introduction

Applications：Medium-pressure hose, suitable for conveying petroleum-based hydraulic oil, crude oil, fuel oil, lubricating, synthetic fat-based oil, emulsified oil, air and water, etc., suitable for railway systems

Product Introduction
Product Parameters

Reinforcement：One or more layers of woven fiber

Cover：Black oil-resistant, weather-resistant, wear-resistant synthetic rubber

Temperature Range：-40 °C to + 100 °C (-40 °F to + 212 °F)

SIZE (Dash)	SIZE (in.)	I.D. (mm)		O.D. (mm)	Max.W.P.	Min.B.P.	Min.B.R.
SIZE (Dash)	SIZE (in.)	Min	Max	Max	(MPa)	(MPa)	(mm)
4	1/4	5.9	6.9	14.2	7.5	30	40
5	5/16	7.4	8.4	15.7	6.8	27.2	50
6	3/8	9.0	10.0	17.3	6.3	25.2	60
8	1/2	12.1	13.3	20.7	5.8	23.2	70
10	5/8	15.3	16.5	24.9	5.0	20.0	90
12	3/4	18.2	19.8	28.0	4.5	18.0	110
16	1	24.6	26.2	35.9	4.0	16.0	130
20	1 1/4	30.8	32.8	44.5	3.5	14.0	140
