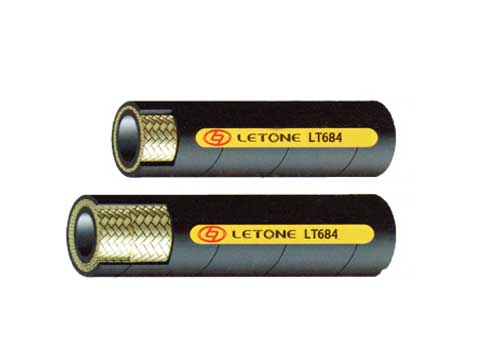

LT684
Applications：suitable for conveying petroleum oil and water-based and biodegradable hydraulic oil, to meet industrial demands for high temperature pipe
Reinforcement：one or two layers of super flexible high-strength steel wire
Cover：black oil-resistant, weather-resistant, wear-resistant synthetic rubber
Temperature range： -40 ° C ~ + 135 ° C (-40 ° F ~ + 275 ° F)
|
SIZE |
SIZE |
I.D. |
Max.W.P. |
Min.B.P. |
Min.B.R. |
|
|
Min |
Max |
(MPa) |
(MPa) |
(mm) |
||
|
5—1 |
3/16—1 |
4.6 |
5.4 |
21.0 |
84.0 |
90 |
|
6—1 |
1/4—1 |
6.2 |
6.9 |
19.3 |
77.0 |
100 |
|
8—1 |
5/16—1 |
7.7 |
8.5 |
17.5 |
70.0 |
115 |
|
10—1 |
3/8—1 |
9.3 |
10.1 |
15.8 |
63.0 |
130 |
|
13—1 |
1/2—1 |
12.3 |
13.5 |
14.0 |
56.0 |
180 |
|
16—1 |
5/8—1 |
15.5 |
16.7 |
10.5 |
42.0 |
200 |
|
19—1 |
3/4—1 |
18.6 |
19.8 |
8.7 |
35.0 |
240 |
|
25—1 |
1—1 |
25.0 |
26.4 |
7.0 |
28.0 |
300 |
|
32—1 |
1 1/4—1 |
31.4 |
33.0 |
4.3 |
17.5 |
420 |
|
38—1 |
1 1/2—1 |
37.7 |
39.3 |
3.5 |
14.0 |
500 |
|
51—1 |
2—1 |
50.4 |
52.0 |
2.6 |
10.5 |
630 |
|
5—2 |
3/16—2 |
4.6 |
5.4 |
35.0 |
140.0 |
90 |
|
6—2 |
1/4—2 |
6.2 |
6.9 |
35.0 |
140.0 |
100 |
|
8—2 |
5/16—2 |
7.7 |
8.5 |
29.7 |
119.0 |
115 |
|
10—2 |
3/8—2 |
9.3 |
10.1 |
28.0 |
112.0 |
130 |
|
13—2 |
1/2—2 |
12.3 |
13.5 |
24.5 |
98.0 |
180 |
|
16—2 |
5/8—2 |
15.5 |
16.7 |
19.2 |
77.0 |
200 |
|
19—2 |
3/4—2 |
18.6 |
19.8 |
15.7 |
63.0 |
240 |
|
25—2 |
1—2 |
25.0 |
26.4 |
14.0 |
56.0 |
300 |
|
32—2 |
1 1/4—2 |
31.4 |
33.0 |
11.3 |
45.0 |
420 |
|
38—2 |
1 1/2—2 |
37.7 |
39.3 |
8.7 |
35.0 |
500 |
|
51—2 |
2—2 |
50.4 |
52.0 |
7.8 |
31.5 |
630 |
