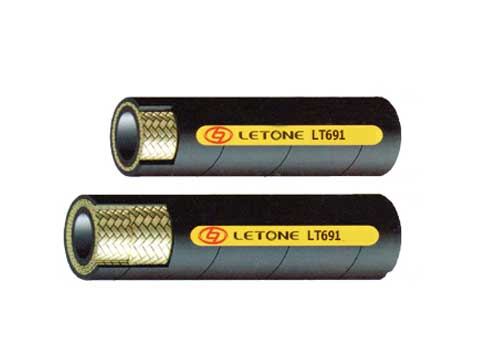

LT691
Applications：suitable for petroleum-based hydraulic oil used at ultra-low temperature
Reinforcement：steel wire braid
Cover：special compound rubber with good weather resistance
Temperature range： -55 ℃ ~ + 100 ℃
|
SIZE |
SIZE |
I.D. |
O.D. |
Max.W.P. |
Min.B.P. |
Min.B.R. |
|
|
Min |
Max |
Max |
(MPa) |
(MPa) |
(mm) |
||
|
6 |
1/4-1S |
5.8 |
6.5 |
13.5 |
25 |
100 |
80 |
|
8 |
5/16-1S |
7.7 |
8.5 |
15.5 |
21 |
84 |
92 |
|
10 |
3/8-1S |
9.8 |
10.5 |
17.5 |
21 |
84 |
104 |
|
13 |
1/2-1S |
12.8 |
13.5 |
21.0 |
14 |
56 |
144 |
|
16 |
5/8-1S |
15.8 |
16.6 |
24.5 |
14 |
56 |
160 |
|
19 |
3/4-1S |
18.8 |
19.8 |
28.5 |
14 |
56 |
192 |
|
25 |
1"-1S |
24.8 |
25.8 |
35.5 |
9 |
36 |
240 |
|
6 |
1/4-2S |
5.8 |
6.5 |
15.2 |
42 |
168 |
80 |
|
8 |
5/16-2S |
7.8 |
8.5 |
16.8 |
42 |
168 |
92 |
|
10 |
3/8-2S |
9.8 |
10.5 |
19.2 |
35 |
140 |
104 |
|
13 |
1/2-2S |
12.8 |
13.5 |
22.3 |
28 |
112 |
144 |
|
16 |
5/8-2S |
15.8 |
16.6 |
25.5 |
28 |
112 |
160 |
|
19 |
3/4-2S |
18.8 |
19.8 |
29.7 |
25 |
100 |
192 |
