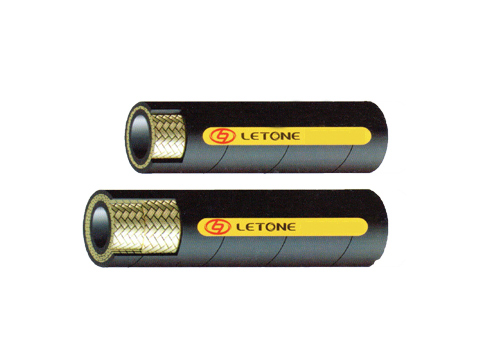

LT586
Application： Suitable for using oil base hydraulic oil, is suitable for the harsh conditions of high temperature and medium pressure hose
Reinforcement：4 plies of steel wire Wrapped in alternating directions
Cover： Weather resistant synthetic rubber cover
TEMPERATURE RANGE：-40℃~+121℃（-40°F~+250°F）
SIZE |
SIZE |
I.D. |
O.D. |
Max.W.P. |
Min.B.P. |
Min.B.R. |
|
Min |
Max |
Max |
(MPa) |
(MPa) |
(mm) |
||
| 10 | 3/8 | 9.3 | 10.1 | 22.2 | 31.5 | 126 | 125 |
| 13 | 1/2 | 12.3 | 13.5 | 25.4 | 28 | 112 | 180 |
| 19 | 3/4 | 18.6 | 19.8 | 32.2 | 21 | 84 | 240 |
| 25 | 1 | 25.0 | 26.4 | 40.9 | 21 | 84 | 300 |
| 32 | 1 1/4 | 31.4 | 33.0 | 52.4 | 17.5 | 70 | 420 |
| 38 | 1 1/2 | 37.7 | 39.3 | 58.7 | 14 | 56 | 500 |
| 51 | 2 | 50.4 | 52.0 | 73.0 | 14 | 56 | 660 |
