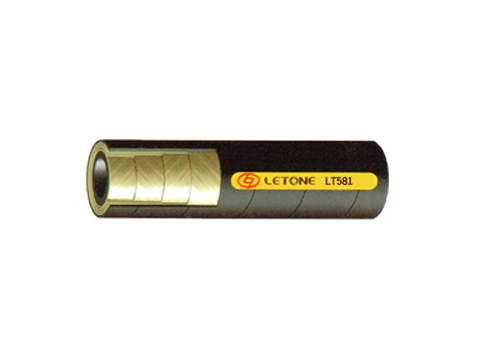

LT581
Application：Suitable for using oil base hydraulic oil, is suitable for the harsh conditions of high temperature and medium pressure hose
Reinforcement： Four-layer steel wire winding layer
Cover：Oil-resistant and weather resistant synthetic rubber The outer rubber layer is composed
Temperature range ：40 ℃ ~ + 121 ℃ (- 40 ° F ~ + 250 ° F)
Standard：Hose execution SAE100R12 standard, GB/T10544-2013 standard
I.D. (mm) |
I.D. (in.) |
I.D. (mm) |
O.D.(mm) |
Max.W.P. |
Min. B.P. |
Min. B.R. |
|
Min |
Max |
Max |
(MPa) |
(MPa) |
(mm) |
||
| 10 | 3/8 | 9.3 | 10.1 | 21.0 | 28 | 112 | 125 |
| 13 | 1/2 | 12.3 | 13.5 | 24.6 | 28 | 112 | 180 |
| 16 | 5/8 | 15.5 | 16.7 | 28.2 | 28 | 112 | 200 |
| 19 | 3/4 | 18.6 | 19.8 | 31.5 | 28 | 112 | 240 |
| 25 | 1 | 25.0 | 26.4 | 39.2 | 28 | 112 | 300 |
| 32 | 1 1/4 | 31.4 | 33.0 | 48.6 | 21 | 84 | 420 |
| 38 | 1 1/2 | 37.7 | 39.3 | 55.0 | 17.5 | 70 | 500 |
| 51 | 2 | 50.8 | 52.0 | 68.3 | 17.5 | 70 | 640 |
