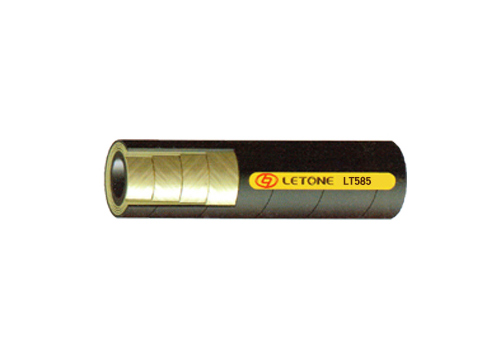

LT585
Application：Suitable for conveying mineral oil, water-based hydraulic oil or water by hydraulic system such as coal mine hydraulic support and comprehensive coal mining unit
Reinforcement：reinforced with copper coated steel wire and black fabric appearance
Cover：anti-aging synthetic rubber
Temperature Range： -40℃~+100℃(-40°F~+212°F)
Standard：Hose execution MT/T98-2006 standard
Characters： made of special rubber with good oil and weather resistance, reinforced with copper coated steel wire and black fabric appearance
I.D. (mm) |
I.D. (in.) |
I.D. (mm) |
O.D.(mm) |
Max.W.P. |
Min. B.P. |
Min. B.R. |
|
Min |
Max |
Max |
(MPa) |
(MPa) |
(mm) |
||
|
10 |
3/8-4 |
9.7 |
10.5 |
24.0 |
70 |
210 |
180 |
|
13 |
1/2-4 |
12.7 |
13.5 |
27.5 |
57 |
172 |
210 |
|
16 |
5/8-4 |
15.7 |
16.6 |
31.0 |
53 |
160 |
260 |
|
19 |
3/4-4 |
18.7 |
19.8 |
35.5 |
46 |
140 |
280 |
|
22 |
7/8-4 |
21.7 |
22.8 |
39.5 |
41 |
124 |
320 |
|
25 |
1-4 |
24.7 |
25.8 |
42.5 |
35 |
112 |
360 |
|
32 |
1 1/4-4 |
31.6 |
32.6 |
50.5 |
32 |
84 |
460 |
|
38 |
1 1/2-4 |
37.7 |
38.8 |
57.5 |
25 |
75 |
560 |
|
45 |
1 3/4-4 |
44.7 |
45.8 |
64.5 |
21 |
64 |
640 |
|
51 |
2-4 |
50.5 |
52.0 |
70.5 |
21 |
64 |
720 |
|
10 |
3/8-6 |
9.7 |
10.5 |
26.0 |
80 |
240 |
180 |
|
13 |
1/2-6 |
12.7 |
13.5 |
30.5 |
72 |
216 |
210 |
|
16 |
5/8-6 |
15.7 |
16.6 |
34.5 |
70 |
204 |
260 |
|
19 |
3/4-6 |
18.7 |
19.8 |
38.5 |
60 |
180 |
280 |
|
22 |
7/8-6 |
21.7 |
22.8 |
42.5 |
53 |
160 |
320 |
|
25 |
1-6 |
24.7 |
25.8 |
45.5 |
50 |
152 |
360 |
|
32 |
1 1/4-6 |
31.6 |
32.6 |
53.5 |
41 |
124 |
460 |
|
38 |
1 1/2-6 |
37.7 |
38.8 |
60.5 |
36 |
108 |
560 |
|
45 |
1 3/4-6 |
44.7 |
45.8 |
67.5 |
32 |
96 |
640 |
|
51 |
2-6 |
50.5 |
52.0 |
74.0 |
32 |
96 |
720 |
