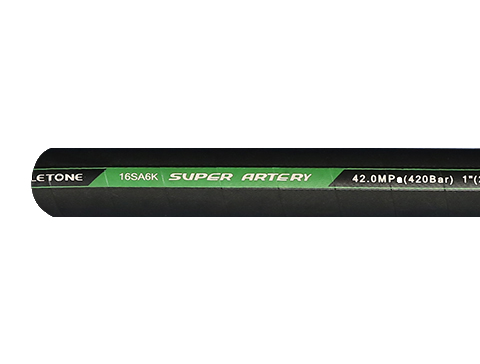

LTSA599
Application： Suitable for using oil base hydraulic oil, is suitable for the harsh conditions of high temperature and medium pressure hose
Reinforcement：Multispiral high tensile super flexible steel wire, four plies≥ 1 million impulse cycles
Cover：Skiving-free black narrow cloth texture hose cover made of anti-aging synthetic rubber
Temperature Range：-40℃~+121℃(-40℉~+250℉)
Standard：ISO18752-DC
Features： Low bending radius; high pressure ; long service life ( weather resistant for more than 5 years and warrantied for 2 years with Letone specific hose connectors)
TYPE |
SIZE |
I.D. |
W.P. |
B.P. |
Min.B.R. |
(in.) |
(mm) |
(MPa) |
(MPa) |
(mm) |
|
|
SA599-4DC |
3/8' |
9.5 |
56 |
224 |
100 |
|
SA599-4DC |
1/2' |
12.7 |
42 |
168 |
140 |
|
SA599-4DC |
5/8' |
15.9 |
42 |
168 |
180 |
|
SA599-4DC |
3/4' |
19 |
42 |
168 |
200 |
|
SA599-4DC |
1' |
25.4 |
42 |
168 |
250 |
|
SA599-4DC |
11/4' |
31.8 |
35 |
140 |
400 |
|
SA599-4DC |
11/2' |
38.1 |
29 |
116 |
480 |
|
SA599-4DC |
2' |
50.8 |
25 |
100 |
650 |
|
SA599-6DC |
11/4' |
31.8 |
42 |
168 |
400 |
|
SA599-6DC |
11/2' |
38.1 |
42 |
168 |
480 |
|
SA599-6DC |
2" |
50.8 |
42 |
168 |
650 |
