LT804
Applications：Applications High quality air hose for heavy duty and mining applications

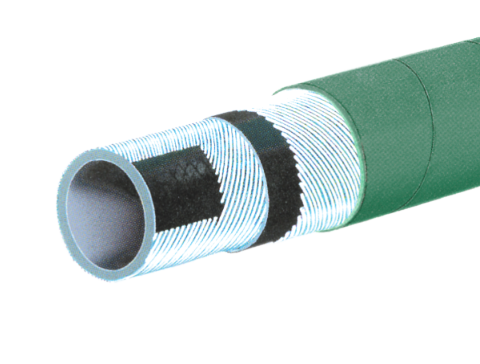

Reinforcement：The hose skeleton layer is made of chemical fiber weaving, winding, and the tube body is strong and durable, and the pressure is high
Cover ：Green SBR-abrasion and ozone-resistant Reinforcement Spiralled
Working Pressure ：Constant pressure - 27 Bar (400PSI)
Temperature range： -22℉ （-40℃）to 176℉ (+80℃)
Features： The hose skeleton layer is made of chemical fiber weaving, winding, and the tube body is durable and has high pressure
| Specifications | ||||||
| Series | I.D. （in.） |
I.D. （mm） |
O.D. （in.） |
O.D. （mm） |
Max.W.P. (psi) |
W. （kg/m） |
| LT804-075 | 3/4 | 19 | 1.14 | 29 | 400 | 0.57 |
| LT804-100 | 1 | 25 | 1.38 | 35 | 400 | 0.71 |
| LT804-125 | 11/4 | 32 | 1.73 | 44 | 400 | 0.92 |
| LT804-150 | 11/2 | 38 | 1.97 | 50 | 400 | 1.06 |
| LT804-200 | 2 | 51 | 2.56 | 65 | 400 | 1.70 |
