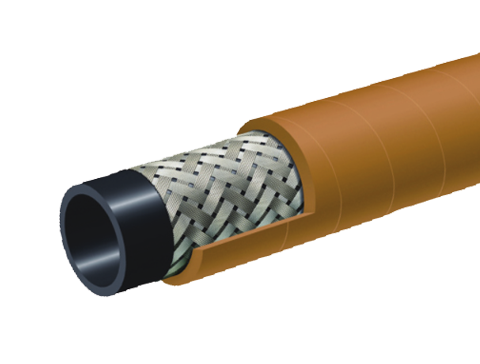

LT801
Application： Used in high pressure working environment, suitable for mining, stone field, construction and other industries
Reinforcement：High tension braided steel wire layer
Cover：Yellow SBR rubber, wear-resistant and oxidation-resistant
Working pressure：Constant pressure 40Bar (600PSI): 1/2", 3/4", 1", 1 1/4", 1 1/2", 2" 31Bar (450PSI): 2 1/2", 3" , 4"
Temperature range：-30°C (-22°F) to +80°C (+176°F)
|
I.D. （in.） |
I.D. （mm） |
O.D. （in.） |
O.D. （mm） |
MaxRec.W.P. (PSI) |
Min.B.R. |
Weight（kg/m） |
| LT801-050 | 1/2 | 13 | 0.87 | 22 | 600 | 21/2 | 0.42 |
| LT801-075 | 3/4 | 19 | 1.10 | 28 | 600 | 4 | 0.55 |
| LT801-100 | 1 | 25 | 1.34 | 34 | 600 | 5 | 0.70 |
| LT801-125 | 11/4 | 32 | 1.65 | 42 | 600 | 61/2 | 1.07 |
| LT801-150 | 11/2 | 38 | 1.89 | 48 | 600 | 71/2 | 1.28 |
| LT801-200 | 2 | 51 | 2.52 | 64 | 600 | 10 | 1.99 |
| LT801-250 | 21/2 | 63 | 3.03 | 77 | 450 | 121/2 | 2.44 |
| LT801-300 | 3 | 76 | 3.54 | 90 | 450 | 15 | 2.90 |
| LT801-400 | 4 | 102 | 4.65 | 118 | 450 | 20 | 5.16 |
