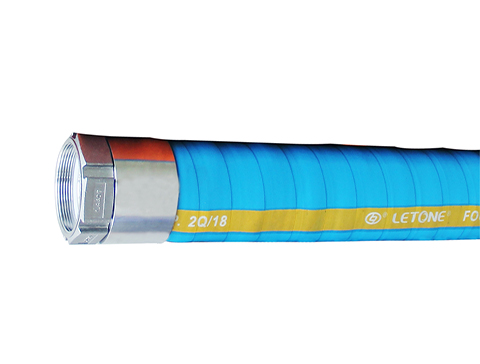

LT1103
Application：Suction of food and drink, specially designed for red wine, beer and strong liquor (no higher than 95% alcohol). Hose can be sterilized for 30 minutes with 5% soda water or steam at 226 F (130 ℃). Dry abrasives are not recommended
Reinforcement：High tension wound textile cord and high flexibility spiral steel wire
Inner Tube：White nontoxic CIIR.Meets FDA and 3A requirements
Temperature Range：-30℃（-22℉）~+80℃（+176℉）
Working Pressure：-16Bar(240PSI)
Specifications |
||||||||
Series |
I.D. （in.） |
I.D. （mm） |
O.D. （in.） |
O.D. （mm） |
Max.W.P. (psi) |
V.H. （in.） |
Min.B.R. |
W. （kg/m） |
LT1103-100 |
1 |
25 |
1.46 |
37 |
240 |
30 |
5 |
0.89 |
LT1103-150 |
11/2 |
38 |
2.05 |
52 |
240 |
30 |
71/2 |
1.50 |
LT1103-200 |
2 |
51 |
2.64 |
67 |
240 |
30 |
10 |
2.26 |
LT1103-300 |
3 |
76 |
3.70 |
94 |
240 |
30 |
15 |
3.41 |
