LT1303
Applications：Suction and discharge of wet or dry abrasives. For the transfer of cereals, flour, and globular foods

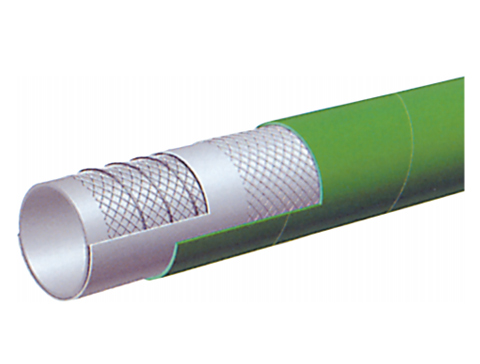

Reinforcement：Spiralled high tensile textile cords and high flexibility spiral steel wire and static wire
Outer Layer：Green SBR/EPDM blend rubber, abrasion-resistant, oxidation-resistant
Working pressure：10Bar(150PSI)for2",3",4"; 5Bar(75PSI)for5",6",8"
Temperature Range：-30℃（-22°F）~+80℃（+176°F）
| Specifications | ||||||||
| Series | ID（in.） | ID（mm） | OD（in.） | OD（mm） | MaxRec.WP(PSI) | Vacuum HG（in.） | Min.B.R | Weight（kg/m） |
| LT1303-200 | 2 | 51 | 2.64 | 67 | 150 | 30 | 6 | 1.83 |
| LT1303-300 | 3 | 76 | 3.62 | 92 | 150 | 27 | 9 | 2.84 |
| LT1303-400 | 4 | 102 | 4.65 | 118 | 150 | 27 | 12 | 3.91 |
| LT1303-500 | 5 | 127 | 5.71 | 145 | 75 | 24 | 20 | 5.67 |
| LT1303-600 | 6 | 152 | 6.69 | 170 | 75 | 24 | 24 | 7.02 |
| LT1303-800 | 8 | 203 | 8.78 | 223 | 75 | 21 | 32 | 10.43 |
Note: Proper electrostatic grounding wire will prolong the hose life.
