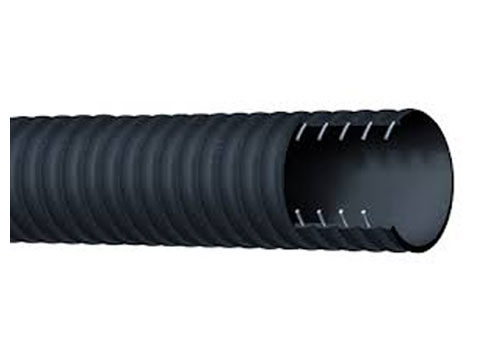

LT1207
Applications：Oil field vacuum tank service, for handling crude oil, frack solutions and slurries Note：For applications up to 35% aromatics. Not for use with refined petroleum products
Reinforcement：High tensile textile cords; high flexible steel helix wire
Cover：Black corrugated SBR- abrasion, ozone, limited oil resistance
Working Pressure：Constant Pressure-10 bar(150psi)
Temperature Range：--30℃(-22°F)to +80℃(+176°F)
| Specifications | ||||||
| Series | I.D. （in.） |
I.D. （mm） |
Max.W.P. （psi） |
Vacuum HG （in.） |
Min.B.R. |
W. （kg/m） |
| LT1207-200 | 2 | 51 | 150 | 30 | 6 | 1.28 |
| LT1207-300 | 3 | 76 | 150 | 27 | 9 | 2.40 |
| LT1207-400 | 4 | 102 | 150 | 27 | 12 | 3.56 |
