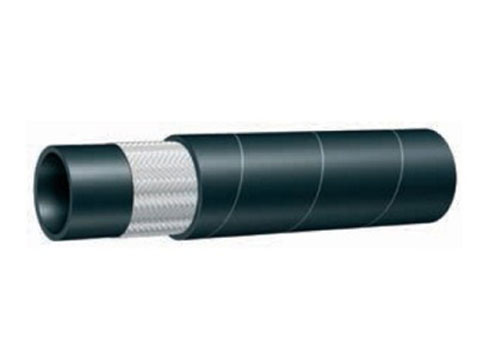

LT1208
Applications：Oil field vacuum tank service, for handling crude oil, frack solutions and slurries (For applications up to 35% aromatics. Not for use with refined petroleum products)
Reinforcement：High tensile textile cords; high flexible steel helix wire
Cover：Black SBR -abrasion, ozone, limited oil resistance
Working Pressure：Constant Pressure-10 bar(150psi)
Temperature Range：--30℃(-22°F)to +80℃(+176°F)
| Specifications | ||||||||
| Series | I.D. (in.) |
I.D. （mm） |
O.D. (in.) |
O.D. （mm） |
Max.W.P. （psi） |
Vacuum HG (in.) |
Min.B.R. （mm） |
W.
(kg/m) |
| LT1208-200 | 2 | 51 | 2.40 | 61 | 150 | 30 | 10 | 1.38 |
| LT1208-300 | 3 | 76 | 3.46 | 88 | 150 | 27 | 15 | 2.57 |
| LT1208-400 | 4 | 102 | 4.57 | 116 | 150 | 27 | 20 | 3.57 |
| LT1208-600 | 6 | 152 | 6.61 | 168 | 150 | 24 | 30 | 6.83 |
| LT1208-800 | 8 | 203 | 8.86 | 225 | 150 | 21 | 40 | 9.82 |
