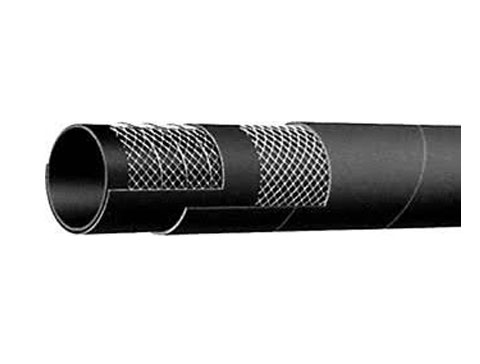

150PSI Black Biofuel Petroleum S&D Hose

LT1214

Product Introduction

Applications：For suction and discharge applications in truck and tank car transfer of gasoline, oil and Biofuels-up to E98 and B100* with up to 60% aromatic content at ambient temperature

Product Introduction
Product Parameters

Reinforcement：High tensile textile cords and steel helix wires

Cover：Black specially-blended neoprene-added resistance against abrasion, ozone and hydrocarbons

Working Pressure：Constant Pressure-10Bar(150PSI)

Temperature Range：--30℃(-22°F)to +80℃(+176°F).

Specifications
Series	I.D. （in.）	I.D. （mm）	O.D. （in.）	O.D. （mm）	Max.W.P. （psi）	Vacuum HG （in.）	Min.B.R. （mm）	W. （kg/m）
LT1214-075	3/4	19	1.14	29	150	30	3	0.61
LT1214-100	1	25	1.38	35	150	30	4	0.76
LT1214-125	11/4	32	1.65	42	150	30	5	0.89
LT1214-150	11/2	38	1.89	48	150	30	6	1.06
LT1214-200	2	51	2.40	61	150	30	8	1.35
LT1214-250	21/2	63	2.95	75	150	27	10	2.11
LT1214-300	3	76	3.46	88	150	27	12	2.54
LT1214-400	4	102	4.57	116	150	27	16	3.54
